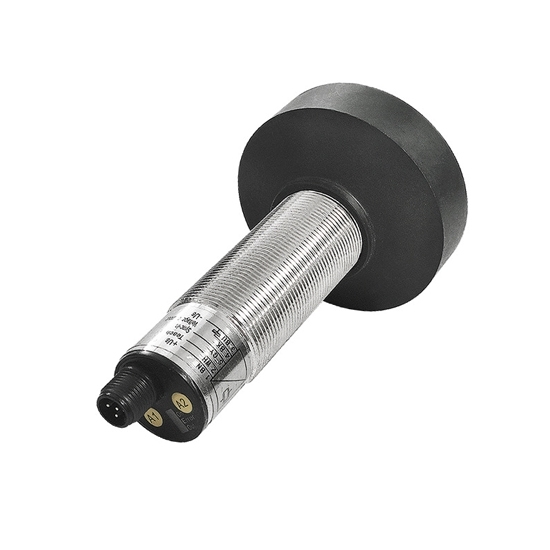

Ultrasonic Distance Sensor, 500-8000mm

The precision ultrasonic distance sensor has a measuring range of 500-8000mm and supports NPN, PNP, 4-20mA and 0-10V output modes, which can meet all kinds of precise distance measurement needs.

SKU: CCHN-UDS-8000

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

This ultrasonic distance sensor can detect a measuring range of 500-8000mm, providing accurate distance data with up to 0.5% repeatability error to ensure precision and reliability. Protection class IP65, with strong dust and waterproof ability, suitable for industrial environments. Simple push-button measuring range adjustment facilitates quick configuration.

Specification

Model	CCHN-UBX800-GM30-B4-H5	CCHN-UBX800-GM30-B5-H5	CCHN-UBX800-GM30-BI-H5	CCHN-UBX800-GM30-BU-H5
Detection Range	500-8000mm
Blind Zone	0-500mm
Transducer Frequency	Approx.65KHz
Response Time	Approx.650ms
Standard Target Board	/	/	100mm*100mm	100mm*100mm
Switching Frequency	≤0.8Hz	≤0.8Hz	/	/
Output Type	B4:NPN NONC	B5: PNP NONC	BI: 4-20mA	BU: 0-10V
No-load Current	/	/	≤60mA	≤60mA
Rated Operating Current	200mA	200mA	/	/
Supply Voltage	10-30VDC ripple 10%
Repeatability	≤0.5%	≤0.5%	±0.1% offull-scale value	±0.1% offull-scale value
Range Adjustment	The farthest and closest range can be adjusted by pushing a button
Protection Class	IP65
Connection Method	H5 (5-pin) M12 connecting wire/2m PVC cable
LED Green	Solid: Power on
LED Yellow	Solid: Switching state switch output; Flashing: Program function
LED Red	Ormal operation: "fault"; Program function: No obiect detected
Product Certification	F©/CE/CCC/ROHS/EAC

Details

Nickel-plated brass housing, A1/A2 convenient adjustment buttons.
High-quality transducers with sensitive and precise response and stable output.
Aircraft-grade connectors can connecting tightly all parts of the structure.

Dimensional Drawing (unit: mm)

Ultrasonic distance sensor 8000mm size

Wiring Drawing

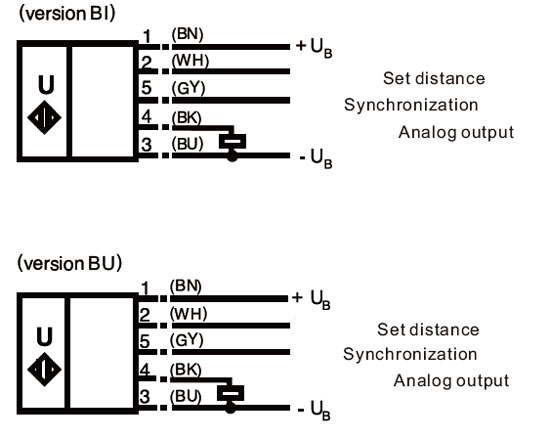

Ultrasonic distance sensor 8000mm wiring drawing Ultrasonic distance sensor 4-20mA wiring drawing

Tips: Common applications for ultrasonic distance sensors

Ultrasonic distance sensors are used in a wide variety of automated systems and robots. The most common applications include:
Level Measurement: Used to detect the level of containers such as water tanks and fuel tanks.
Obstacle Detection: In robotics or automation equipment to help detect obstacles ahead and avoid collisions.
Object Counting and Position Recognition: For automatic counting and position determination of objects or goods, commonly used in warehouse management and logistics industry.
