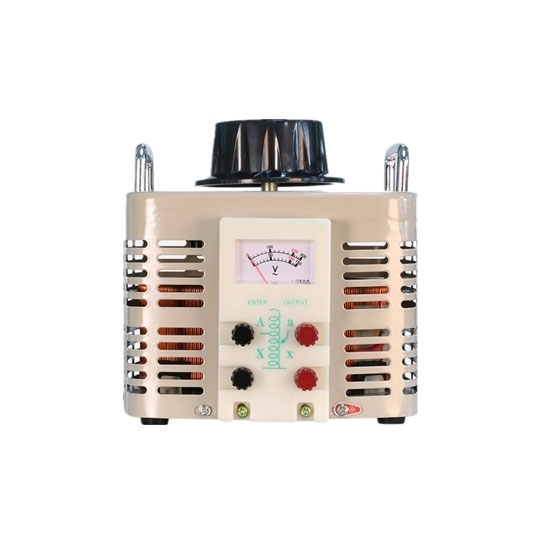

3 kVA Single Phase Variac Voltage Regulator

3 kVA Single Phase Variac Voltage Regulator

Cheap price variac transformer, with 3 kVA rated capacity, 110V/220V input voltage, working frequency is 50 Hz/60Hz, long life and high efficiency, voltage regulator adopts metal shell, which is flame retardant, safe and durable, factory direct sales.

SKU: CCHN-VVR-3K

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Single variac transformer for sale, cheap price, 3 kVA, frequency 50Hz, high quality and safety, voltage regulator adopts all-copper coil and imported carbon brush, which has good electrical conductivity.

Note: Support the split phase (L1,L2+N,G), Please contact us.

3 kVA Single Phase Variac Voltage Regulator Features

3 kVA and single phase.
Better protection, high quality workmanship.
9.6A rated output current and 0-250V rated output voltage, 220V rated input voltage.
Widely used in various power supply sites with frequency 50Hz.
High quality and safety variac voltage regulator.

3 kVA Single Phase Variac Voltage Regulator Specifications

Model	CCHN-TDGC2-3K
Phase No	1
Frequency	50 Hz	60Hz
Rated Input voltage	220V	110V
Rated Output voltage	0~250V	0~130V
Rated Capacity	3 kVA	3 kVA
Max Output Current	9.6A	18A
Usage	SVC
Current Type	AC
Actual Output Current	(actual output voltage * rated current) / maximum output voltage
Type	Contact Type Regulators
Weight	10.4kg
Dimension	495285270mm

3 kVA Single Phase Variac Voltage Regulator Detail

Tips: Fault causes of voltage regulator

The transition resistance in the auxiliary contact is broken during the switching process.
As the contact roller is stuck, the tap switch stops at the transition position, thus causing the inter turn short circuit to burn out.
The tap switch is not well sealed, water enters and thus causing short circuit between phases.
Tap switch tank is short of oil.
Crossing fault current during voltage regulation.
