20 kVA Single Phase Variac Voltage Regulator

20 kVA Single Phase Variac Voltage Regulator

Cheap price 20 kVA variac transformer, 1 phase, with 64A max output current, variable transformer rated input voltage is 220V. Affordable and factory direct sales.

SKU: CCHN-VVR-20K

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy cheap variac transformer, 20 kVA, single phase, widely used in chemical industry, metallurgy, instrumentation, machinery manufacturing, light industry, public equipment, household appliances, etc.

Note: Support the split phase (L1,L2+N,G), Please contact us.

20 kVA Single Phase Variac Voltage Regulator Features

The rated output voltage is 0-250V and rated input voltage is 220V.
The rated output current is 64A.
With 20 kVA power, 1 phase.
Widely used in various power supply sites with frequency 50Hz/60Hz.
High performance and high quality variac voltage regulator.

20 kVA Single Phase Variac Voltage Regulator Specifications

Model		CCHN-TDGC2-20K
Phase No		1
Frequency		50Hz/60Hz
Rated Input Voltage		220V
Rated Output Voltage		0-250V
Rated Capacity		20 kVA
Max Output Current		64A
Usage		SVC
Current Type		AC
Type		Contact type regulators
Weight		50 kg
Actual Output Current		(actual output voltage * rated current) / maximum output voltage
Dimension	L	370mm
	W	310mm
	H	640mm

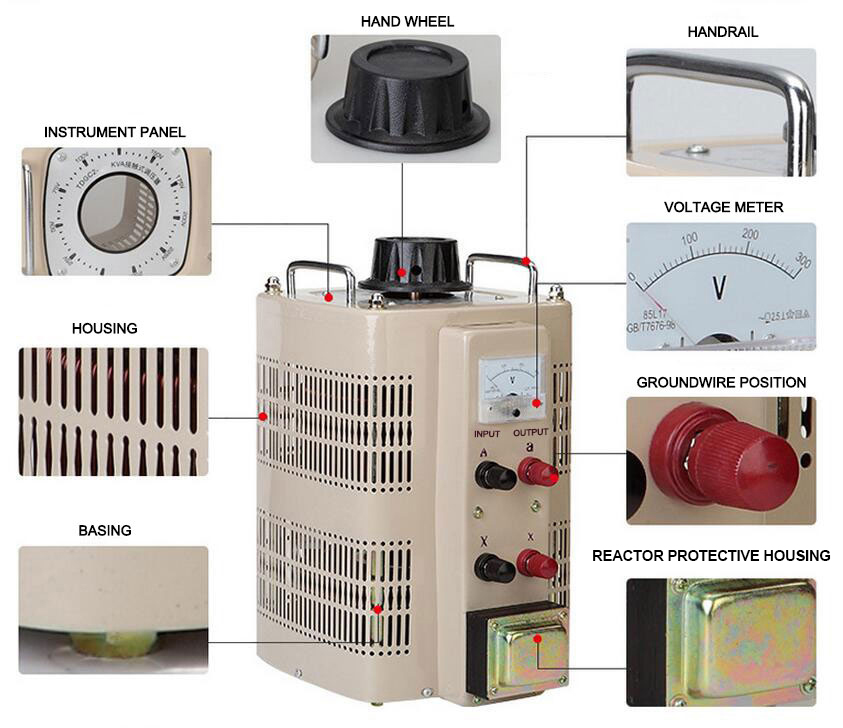

20 kVA Single Phase Variac Voltage Regulator Detail

Tips: Inspection procedures of voltage regulator

Firstly, close the outlet valve slowly and check the pressure in the pipeline between the regulator and the outlet valve. If the system works normally, the outlet pressure will temporarily increase due to closure and then become stable. If the outlet pressure continues to rise, it means that the pressure regulating valve port can not be closed, resulting in abnormal system. At this point, the voltage regulator should be switched off.
