1.5kW (2 hp) 3 Phase AC Vibration Electric Motor, 220V/380V

High power 2 hp (1.5kW) 3 phase vibration electric motor adopts high-quality bearings to ensure the smooth operation of the vibration motor and comes with 220V/380V AC, 50Hz frequency, 950 rpm speed, 2573kg force, 6 pole, IP65 waterproof and CE certificate, designed for industrial use.

Specifications

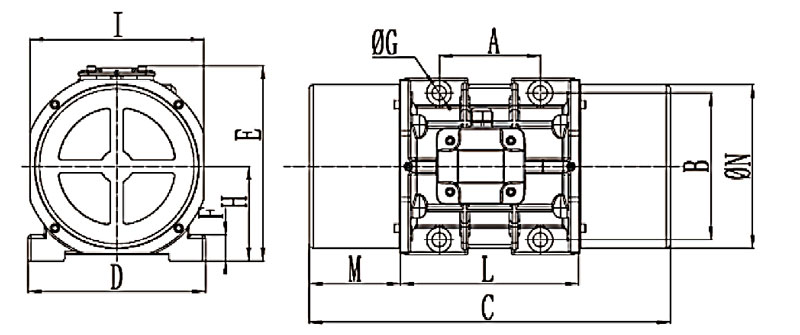

Dimension (Unit: mm)

Internal Structure

Applications

CCHN 1.5kW (2 hp) 220V/380V AC 3 phase micro vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

Tips: How to maintain and repair the vibration electric motor?

1. Keep the motor clean and check whether the grounding device of the vibration electric motor is reliable.
2. Check the reliability of the vibration motor drive mechanism.
3. Check whether the ventilation of the vibration motor and the lubrication of the bearings are normal.
4. Pull the shaft of the vibrating electric motor to check whether the rotor can rotate freely and whether there is noise during rotation.
5. Check whether the brush assembly of the vibration motor and the brush lifting mechanism are flexible and whether the position of the brush lifting handle is correct.
6. Check whether there are any cracks in the appearance of the vibration electric motor, whether the fastening screws and parts are complete, and whether the fixing condition is good.
