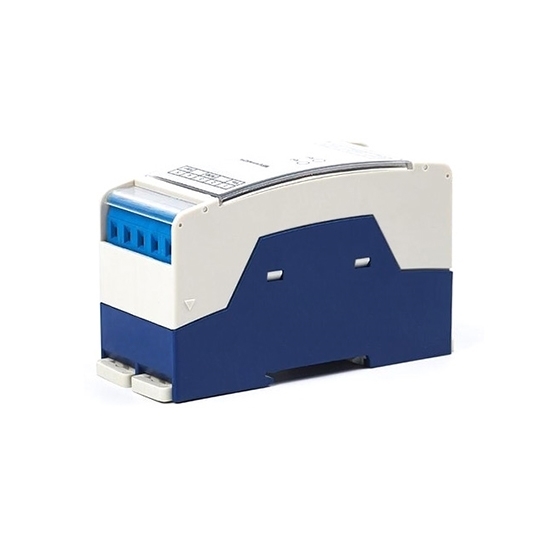

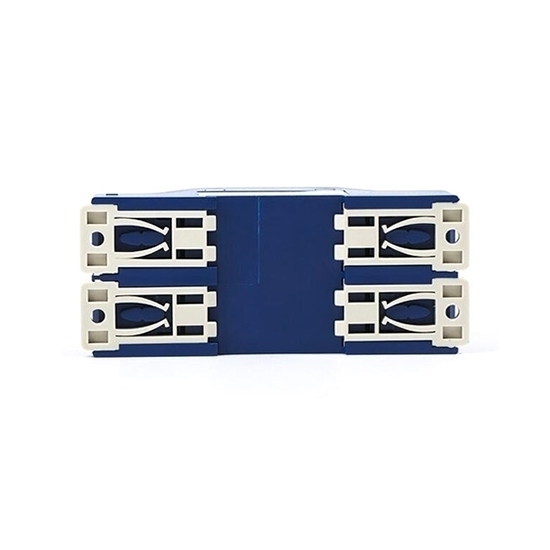

AC Voltage Transducer, Range 10V to 500V, Power Supply AC/DC 120V/240V

AC Voltage Transducer, Range 10V to 500V, Power Supply AC/DC 120V/240V

AC voltage transducers are input/output/power supply isolated voltage transducers, with measuring range from 10V/50V/100V/200V/300V to 500V, wide power supply voltage AC/DC 85V~265V, work temperature -25~+70℃, frequency range 25Hz ~ 1kHz, and strong anti-interference capability.

SKU: CCHN-VOS-AC500

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

AC voltage transducer has measuring range of 10V/50V/100V/200V/300V to 500V.

Specification:

Model	CCHN-WBV412H29	CCHN-WBV414H29
Shipping weight	1kg
Measuring range of input voltage *	AC 0-10V ~ 0-500V
Short-time overload	2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
Linear measurement range	0% ~ 120% measuring range
Frequency range	25Hz ~ 1kHz
Output signal *	DC 0-5V, 0-10V, 1-5V	DC 4-20mA, 0-20mA
Power supply	AC/DC 85V~265V
Accuracy	0.2%F.S.	0.5%F.S.
Load capacity	6mA	≤500Ω
Response time	≤200ms
Temperature drift	350*10^-6/℃
Output ripple voltage	≤10mV
Isolation features	Isolation between input, output and power supply
Isolation voltage	Input and output: DC 2.5kV, 1min Power supply and input: DC 2.5kV, 1 min Power supply and output: DC 2.5kV, 1 min
Work temperature	-25~+70℃
Storage temperature	-40~+85℃
Protection features	EMC standards: EN61326: 2006 Safety standards: EN60100:2001
Mean time between failures	＞50000h
Housing material	Fire-retardant ABS
Wiring	Terminal connection
Installation	DIN rail (NS35/7.5, NS35/15, EN50022)

Voltage transducer AC 10V to 500V dimensional drawing (unit: mm):
AC voltage transducer 10V to 500V power supply AC/DC 120V/240V dimension

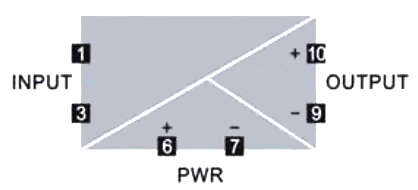

Voltage transducer AC 10V to 500V wiring diagram:

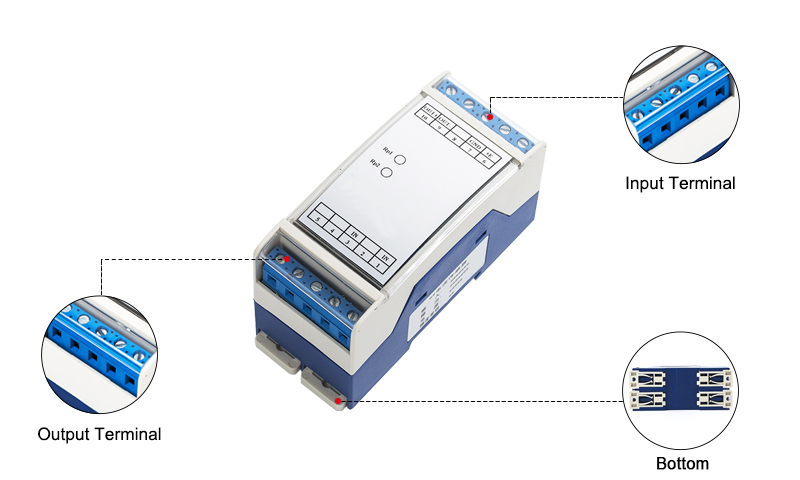

Details

Tips: How to calculate the external resistance value of the voltage sensor?

When the magnetic balance voltage sensor is applied, the measured voltage is converted into the rated input current for measurement, and an external resistance needs to be added. The calculation is as follows:

Example: Use a voltage sensor to measure 220V voltage.
Because: The rated input current of the voltage sensor I_i=10mA, the internal resistance of the primary side R_i=430Ω. Now to measure the voltage U_i=220V, the external resistance R needs to be calculated.
Solution: R=V/I_i-R_i=220V/10mA-430Ω=21.57kΩ
Considering the standardization of the resistance, choose the external resistance R=22kΩ.

From this point of view, when measuring voltages above 100 volts, the simple calculation method in engineering is R=U_i/I_i. However, if the accuracy error of the entire measurement system is considered, it should be calculated strictly according to the above method. The user does some simple calculations according to the usage, so that the voltage transducers are in the best working state.
