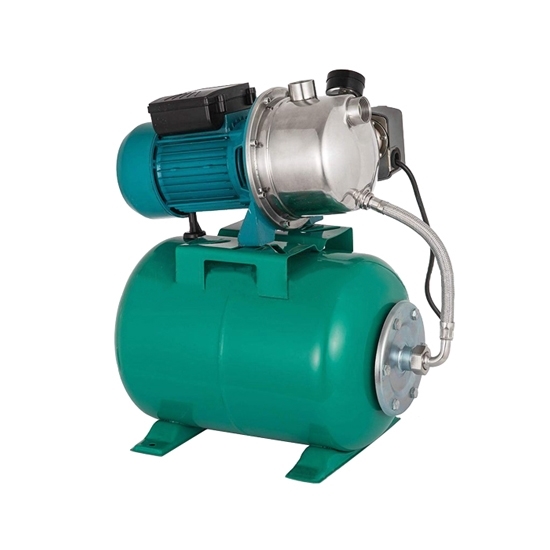

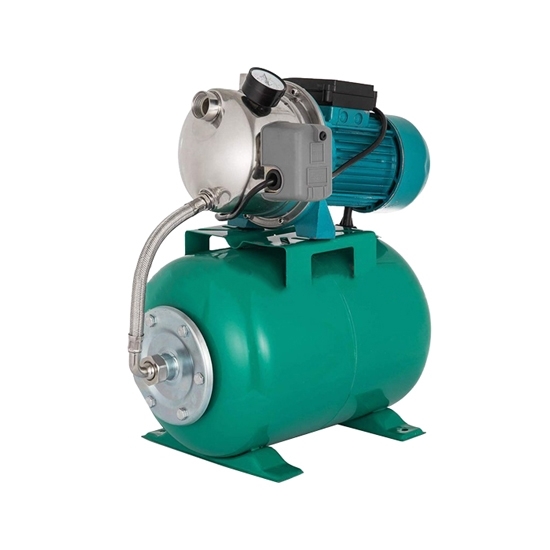

1.5 hp Shallow Well Jet Pump with Pressure Tank

1.5 horsepower shallow well jet pump with pressure tank can be used for irrigation and sprinkler system in garden and yard. This stainless steel water pump needs to be installed on the ground to convey clear water, high performance and convenient.

Specification

• Model: CCHN-JS-120
• Flow: 3m³/h
• Head: 48m
• NPSH: 10m
• Suction Diameter: 25mm (1 inch)
• Discharge Diameter: 25mm (1 inch)
• Stage: Single Stage
• Voltage (Optional): 110V 60Hz, 220-240V 50Hz
• Power: 1.5 hp (1.1 kW)
• Motor Wire: 100% Copper Wire
• Cable: 1m
• Pressure Tank: 20L
• Body Material: Stainless Steel
• Performance: Automatic
• Drive Mode: Electric
• Conveying Medium: Clear Water
• Pump Shaft Position: Horizontal
• Impeller Structure: Semi-Open Impeller
• Number of Impellers: 1
• Weight: 14kg

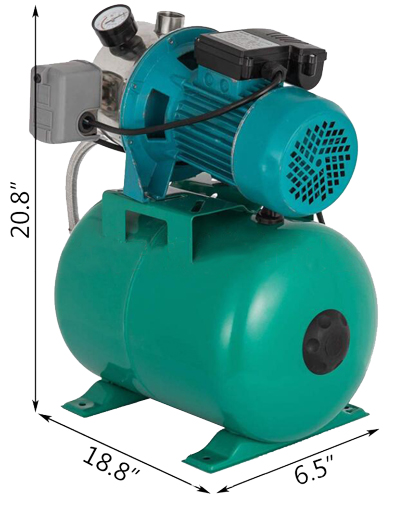

Dimension

Tips: Shallow well jet pump maintenance

Jet pumps do not require regular maintenance. However, in new installations, the nozzles may become partially or completely clogged with plastic cuttings or dirt. When this happens, it may pump water, but not build up to "cut off" pressure. When the pump is pumping silt or sand, wear occurs around the impeller eye, saving pumping capacity and maximum pumping pressure. Allowing the pump to run dry will cause leakage through the pump shaft seal.
