1300W Submersible/Deep Water Well Pump, 110VDC

1300W Submersible/Deep Water Well Pump, 110VDC

Cheap price well pump for sale online, 110 volt water well pump with 1300W rated power, 155m/ 112m/ 80m maximum head can be chosen, maximum flow 1004/ 1585/ 1849 gallons per hour, 3 inch/ 4 inch inlet diameter and 1.25 inch outlet diameter. Deep well pump can be used for water feature, water gardens, tank, pool, large pond or fountain.

SKU: CCHN-WWP-110V1300

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Low price submersible well pump with brushless DC motor internal motor, 80cm/ 60cm length for selection, 4000 rpm speed, single-suction plastic impeller/ single-suction stainless steel impeller impeller structure and 45% efficiency.

Well Pump Features

Model	CCHN-3DPC3.8-155-110-1300	CCHN-4DPC6-112-110-1300	CCHN-4DSC7-80-110-1300
Max. flow	3.8m³/ h (1004 gph, American system)	6m³/ h (1585 gph, American system)	7m³/ h (1849 gph, American system)
Max. head	155m (510ft)	112m (365ft)	80m (260ft)
Length	80cm	60cm	60cm
Inlet diameter	3 inch	4 inch	4 inch
Outlet diameter	1.25 inch	1.25 inch	1.25 inch
Impeller structure	Single-suction plastic impeller	Single-suction plastic impeller	Single-suction stainless steel impeller
Material of outlet/connector/oil cylinder	Brass	Brass	Stainless steel or brass
Voltage	110V DC
Power	1300W
Internal motor	Brushless DC motor
Speed	4000rpm
Material of shaft	304 stainless steel
Material of outlet/connector/oil cylinder	Brass
No water protection function	The pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
Required open circuit voltage (VOC) of solar panel	＜100V DC
Required power of solar panel	≥1.3*pump power
Efficiency	0.45
Warranty	2 years
Cable length	2m

Controller Features

Model	DF-110
Best MPPT voltage range	110-150V DC
Max. input current	15A
Working temperature	-15~+60℃ (5~140℉)
Display	LED display can show power, voltage, current and speed value.
Functions	Automatic charging (for battery) Variable frequency Automatic power ON/ OFF Soft start High voltage/ low voltage/ over-current/ high temperature protection
Protection class	IP65

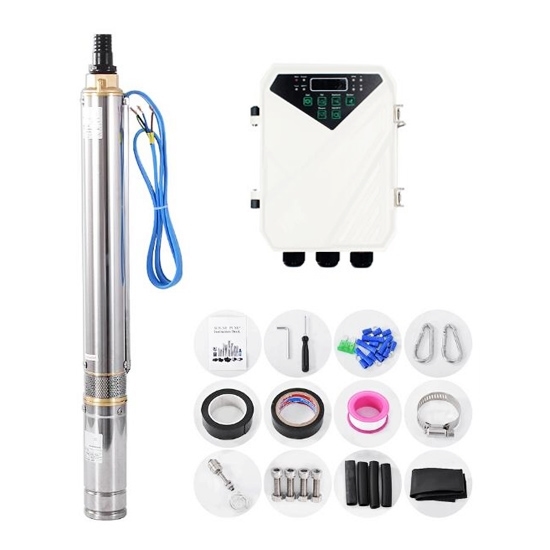

Package included

1 * Water well pump with 2m cable
1 * DC controller
1 * Stainless steel float switch (water level sensor for the tank)
1 * Pump outlet joint connector
1 * Splice kit for cable join
1 * Splice kit for waterproof
1 * User manual

1100W 110V DC water well pump performance curves:

Max. Flow: 3.8m³/h, Max. Head: 155m, Model: 3DPC3.8-155-110-1300

1300W 110V DC water well pump high head performance curves

Max. Flow: 3.8m³/h, Max. Head: 123m, Model: 4DPC6-112-110-1300

1300W 110V DC 4 inch water well pump performance curves

Max. Flow: 3.8m³/h, Max. Head: 123m, Model: 4DSC7-80-110-1300

1300W 110V DC 4 inch water well pump high head performance curves

Tips: How to Calculate the Head of Water Well Pump for Water Tank?

When we design a water pumping system for water tank or home use, we should confirm the head of well pump. If the pump head is not enough, the water flow will become small or even the water can not be pumped to the water tank.

In general, there are 3 distance should be confirmed.

h1: the perpendicular distance between water tank and ground.
h2: the perpendicular distance between ground and solar water pump (in the well).
h3: the horizontal distance between water tank and solar water pump (in the well).

Then, the pump head H can be calculated as follows:

H=h1+h2+h3/ 10

For example, the height of water tank is 12m, the solar water pump is placed at a depth of 5m, and the horizontal distance between water tank and solar water pump is 10m.

According to the formula, H=h1+h2+h3/ 10=12+5+10/ 10=18m.
