2000 lbs 12V Electric Boat Trailer Winch

Lightweight 12 volt DC electric boat winch with 0.4hp (280W) motor and wired remote control for winching boats onto the trailers and lifting vehicles from muddy road, 2000 pound single line rated pull strength, 3m electric cable.

SKU: CCHN-WINCH-B2000

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Electric boat trailer winch is perfect for loading and unloading boats, ATVs, UTVs, trucks, jeeps, cars, and even modified vehicles. Its 2000 pound single line rated pull strength means you have the versatility needed from this electric winch while on water.

Feature

Electric boat winch is portable power trailer winch for pulling boats, stuck vehicles and other heavy items.
With powerful 2000 lbs pulling capacity.
12V DC powered for convenient use without extension cords or small gas engines.
Built-in carrying handle and quick-attach mounting plate.

Specification

Model	CCHN-B2000LB
Single Line Rated Pull	2000 lbs (907kgs)
Voltage	12V DC
Motor	0.4hp (280W)
Gearing	Gear Gearshift
Drum Speed	1.8m/min
Drum Size (Dia x L)	Ø25mm x 82mm
Wire Rope	Ø4.8mm x 9.2m
Remote Switch Cable Length	3m (10 ft.)
Electric Cable Length	3m (10 ft.)
Pulley Block	Optional
Overall Dimensions (L x W x H)	251.5 x 238.2 x 199.8mm
Packing Size	570 x 380 x 300mm
Protection Grade	IP67
Gross Weight	24kg
Net Weight	22kg

Package Included

1	1 x 2000 lbs Electric Boat Winch
2	1 x Clevis hook
3	1 x Wired remote controller
4	1 x Universal mounting plate
5	1 x Winch cable
6	1 x Set of bolts
7	1 x User manual

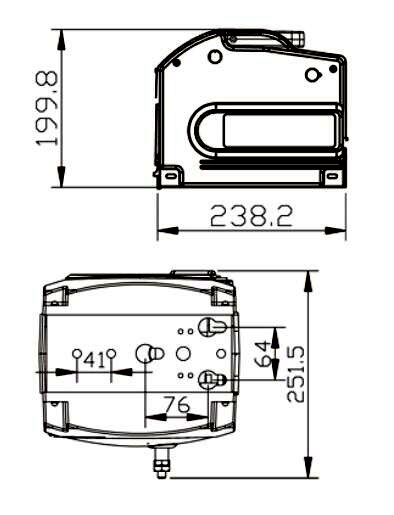

Dimensions (Unit: mm)

Dimensions of 2000 lbs 12V Electric Boat Trailer Winch

Tips for using electric boat trailer winch

Electric boat trailer winch are strictly prohibited to be used for lifting or carrying people.
Do not work continuously for more than one minute under full load to prevent the motor from burning out.
When the motor is overheated, please let it cool down before continuing to work.
It is recommended to use movable pulleys when the load exceeds 60% of the calibrated tension.
